MPPT 40A Solar Charge Controller LCD Solar Regulator system controller auto voltage identification AUSTRALIAN STOCK FOR IMMEDIATE DISPATCH

MPPT 40A Solar Charge Controller LCD Solar Regulator system controller auto voltage identification AUSTRALIAN STOCK FOR IMMEDIATE DISPATCH

Regular price $399.99 Sale

or 10 interest free payments starting from $39.99 with What's this?

 AUSTRALIAN STOCK FOR IMMEDIATE DISPATCH

MPPT Solar Charger Controller 12V 24V 36V 48V Auto Lead Acid, Gel, lithium ion

Charge Controller for Max 150V Solar Panel Input ML2440



Modell

ML2420

ML2430

ML2440

Batteriespannung

12V/24V

Maximale Panelspannung

100V(25)90V(-25)

Ladestrom

20A

30A

40A

Entladestrom

20A



Modell

ML4830N15

Batteriespannung

12V/24V/36V/48V

Maximale Panelspannung

150V

Ladestrom

30A

Entladestrom

20A

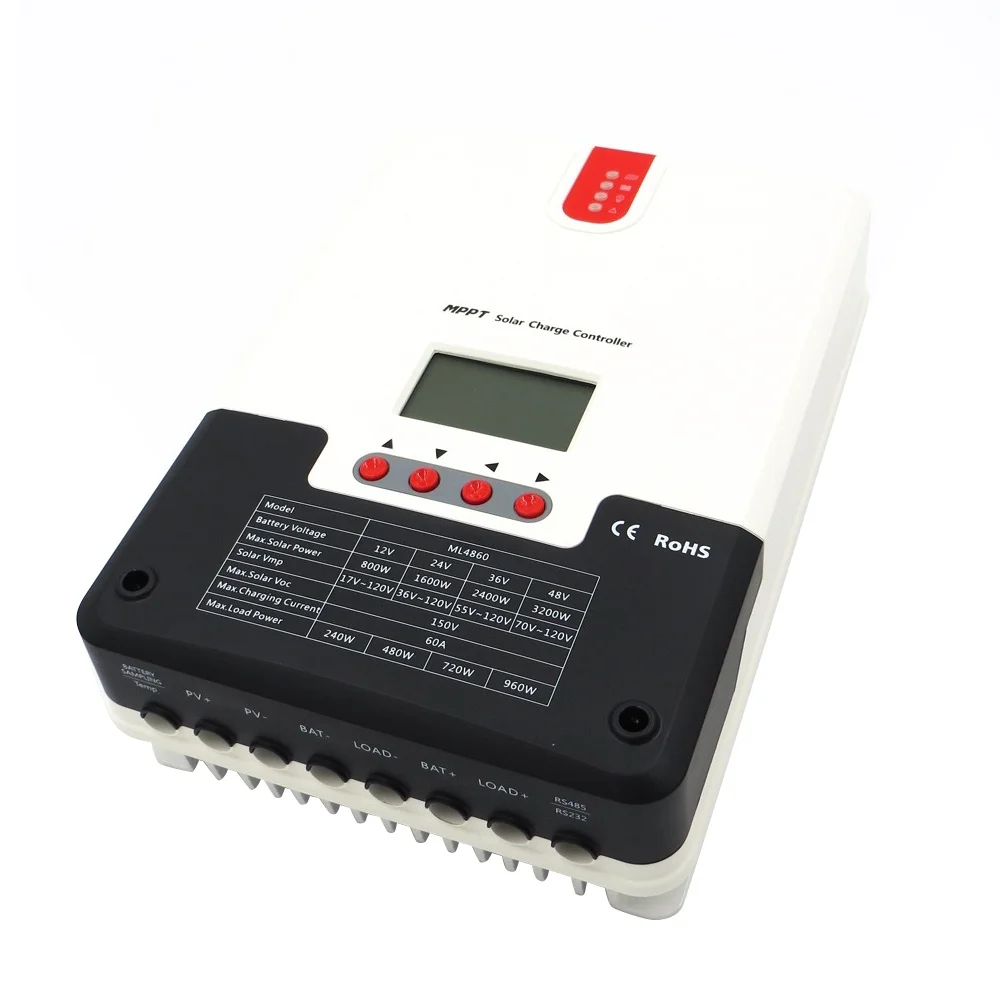

model

ML4860

Battery voltage

12V/24V/36V/48V

Maximum panel voltage

150V(25)145V(-25)

Maximum input power

800W/12V ; 1600W/24V ; 2400W/36V ; 3200W/48V

recharging current

60A

Discharge current

20A

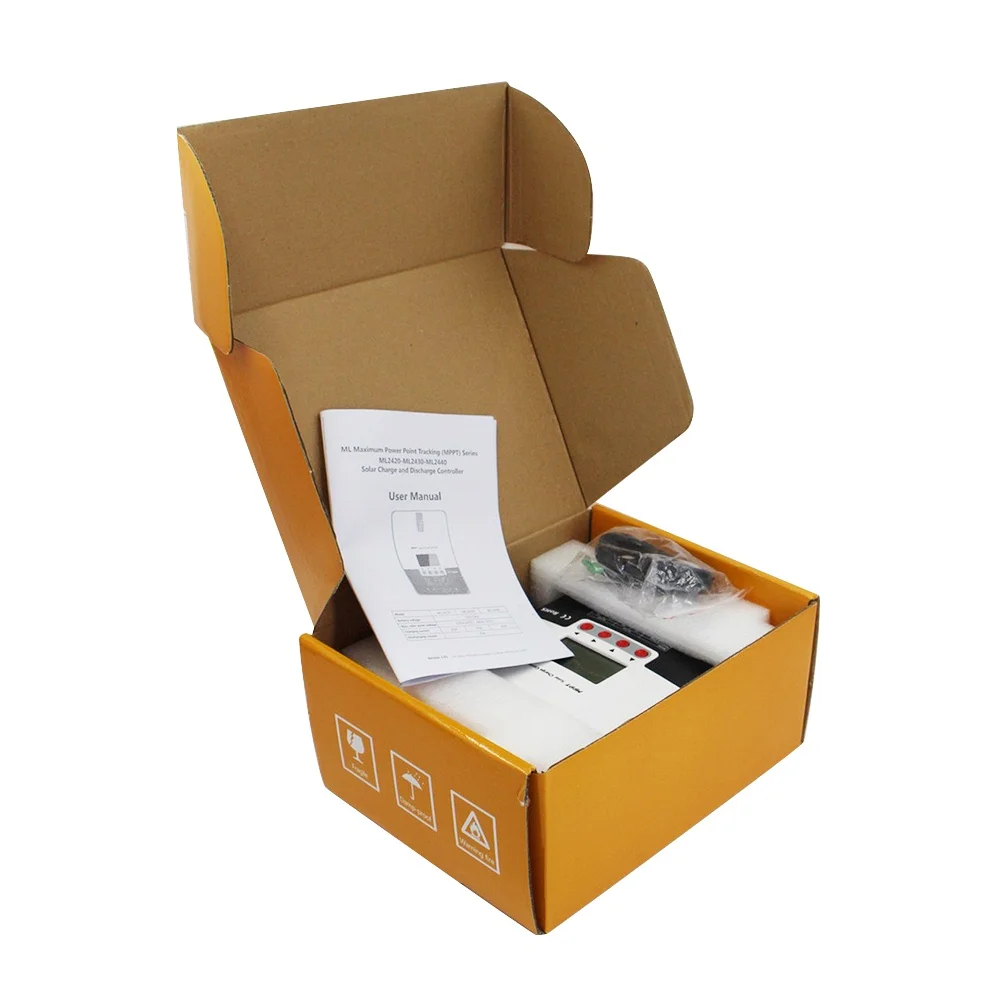

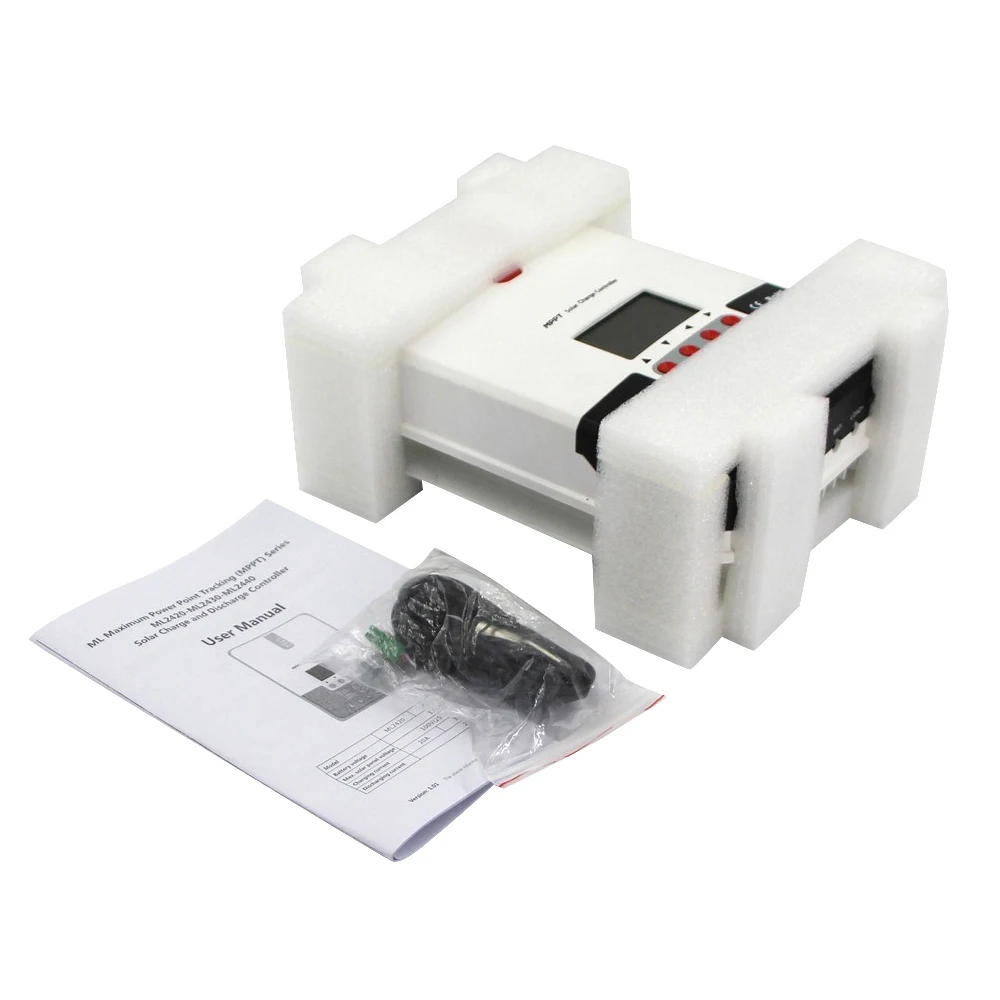

Package Contents:



1x Solar Charge Controller(ML2420/ML2430/ML2440/ML4830N15/ML4860)

1x Temperature Sensor

1x English User Manual



Overview:



This product can keep monitoring the solar panel's generating power and tracking the highest voltage and current values (VI) in real time, enabling the system to charge the battery in maximum power. It's designed to be used in off-grid solar photovoltaic systems to coordinate operation of the solar panel, battery and load, functioning as the core control unit in off-grid photovoltaic systems.



This product features an SIMPLE LCD screen which can dynamically display the operating status, operating parameters, controller logs, control parameters, etc. Users can conveniently check parameters by the keys, and modify control parameters to cater to different system requirements.



The controller utilizes standard Modbus communication protocol, making it easy for users to check and modify system parameters on their own. Besides, by providing free monitoring software, we give users the maximum convenience to satisfy their varied needs for remote monitoring.



With comprehensive electronic fault self-detecting functions and powerful electronic protection functions built inside the controller, component damage caused by installation errors or system failures can be avoided to the greatest extent possible.



Features:



With the advanced dual-peak or multi-peak tracking technology, when the solar panel is shadowed or part of the panel fails resulting in multiple peaks on the I-V curve, the controller is still able to accurately track the maximum power point.



A built-in maximum power point tracking algorithm can significantly improve the energy utilization efficiency of photovoltaic systems, and raise the charging efficiency by 15% to 20% compared with the conventional PWM method.



A combination of multiple tracking algorithms enables accurate tracking of the optimum working point on the I-V curve in an extremely short time.



The product boasts an optimum MPPT tracking efficiency of up to 99.9%.



Advanced digital power supply technologies raise the circuit's energy conversion efficiency to as high as 98%.



Different charging program options including those for gel batteries, sealed batteries and open batteries, customized ones, etc. are available.



The controller features a limited current charging mode. When the solar panel power exceeds a certain level and the charging current is larger than the rated current, the controller will automatically lower the charging power and bring the charging current to the rated level.



Instantaneous large current startup of capacitive loads is supported.



Automatic recognition of battery voltage is supported.



LED fault indicators and an LCD screen which can display abnormality information help users to quickly identify system faults.



Historical data storage function is available, and data can be stored for up to a year.



The controller is equipped with an LCD screen with which users can not only check device operating data and statuses, but also modify controller parameters.



The controller supports standard Modbus protocol, fulfilling the communication needs of various occasions.



All communications are electrically isolated, so users can rest assured in usage.



The controller employs a built-in over-temperature protection mechanism. When temperature surpasses the set value, the charging current will decline in linear proportion to the temperature and discharging will be halted so as to curb the temperature rise of the controller, effectively keeping the controller from being damaged by overheat.



With the help of an external battery voltage sampling function, battery voltage sampling is exempted from the effect of line loss, making control more precise.



Featuring a temperature compensation function, the controller can automatically adjust charging and discharging parameters in order to extend the battery's service life.



The controller also features a battery over-temperature protection function, and when the external battery temperature exceeds the set value, charging and discharging will be shut off so as to protect components from being damaged by overheat.



TVS lighting protection

 1155 调成白底10调成白底1112调亮成纯白底13调亮成白底

Model Number: ML2430/ML2440
is_customized: Yes8
Application: Thermal Controller
Application: Charger Controller
Application: Solar System Controller
Maximum Current: DC100V
Function 1: Auto solar controller
Function 2: Auto solar charge controller
Function 3: Solar Charger Controller
Function 4: MPPT Charger Controller
