DC 6.5-100V 0-100A  LCD Display Digital Current Voltage Power  Multimeter

DC 6.5-100V 0-100A LCD Display Digital Current Voltage Power Multimeter

Regular price $69.99 Sale

or 10 interest free payments starting from $6.99 with What's this?

AUSTRALIAN STOCK FOR IMMEDIATE DISPATCH





1. Working voltage: 6.5 ~100VDC

2. Test voltage: 6.5 ~100VDC

3. Rated power: 100A

4. Measurement accuracy: 1.0 grade

Function

1. Electrical parameter measurement function (voltage, current, active power, energy)

2. Voltage alarm function (over voltage alarm threshold, backlight and voltage flashing to alarm).

3. The reset function of energy key.

4. Store data when power off.

5. Large-screen LCD (display voltage, current, active power, energy at the same time)

6. Backlight function.

Display format

1.       Power: test range: 0~10kW

Within 1KW, the display format is 0.0~999.9W;

1KW and above, the display format is 1000~9999W.

2.       Energy: test range: 0~9999kWh

Within 10KWh, the display format is 0~9999Wh;

10kWh and above, the display format is 10~9999kWh.

3.       Voltage: test range: 6.5~100V

Display format: 6.50~99.99V

4.       Current: test range: 0~100A (0~20A)

Display format: 0.00~99.99

Key

1.       Backlight control

Short press the key to turn on or off the backlight, the backlight has memory function, it can store the on or off state when power off.

2.       Reset energy

Step1: Long press the key until the power display area display “CLr”, then release the key.

Step2: At this moment, the energy is flashing to prompt this is the energy reset state, if short press the key again, then the energy value is cleared and exit the reset flashing state.

Step 3: If there is no operation within 5 seconds, it means the energy value is not cleared and will exit the reset state.

3.       Set voltage alarm threshold

Step1: Long press the key until the power display area display “SET”, then release the key.

Step2: After enter this state, the voltage area display the current high voltage alarm value, the current area display the current low voltage alarm value and the last digit begin to flash, then you can short press to plus 1, when there is no operation over 3 seconds, it will switch the digit position automatically, from the high voltage alarm value to the low voltage alarm value, there are total six digits, the range of the voltage alarm threshold is 6.5 ~99.9V;

Step3: After finish the setting, long press the key until the screen display “PASS” ,that means you set successfully and will exit the setting state automatically.

Precautions

1. This module is suitable for indoor, please do not use outdoor.

2. Applied load should not exceed the rated voltage, current.

3. Wiring order can't be wrong.

center



100% new brand high quality

1  x DC Meter

1  x 100A shunt

 item picture



7

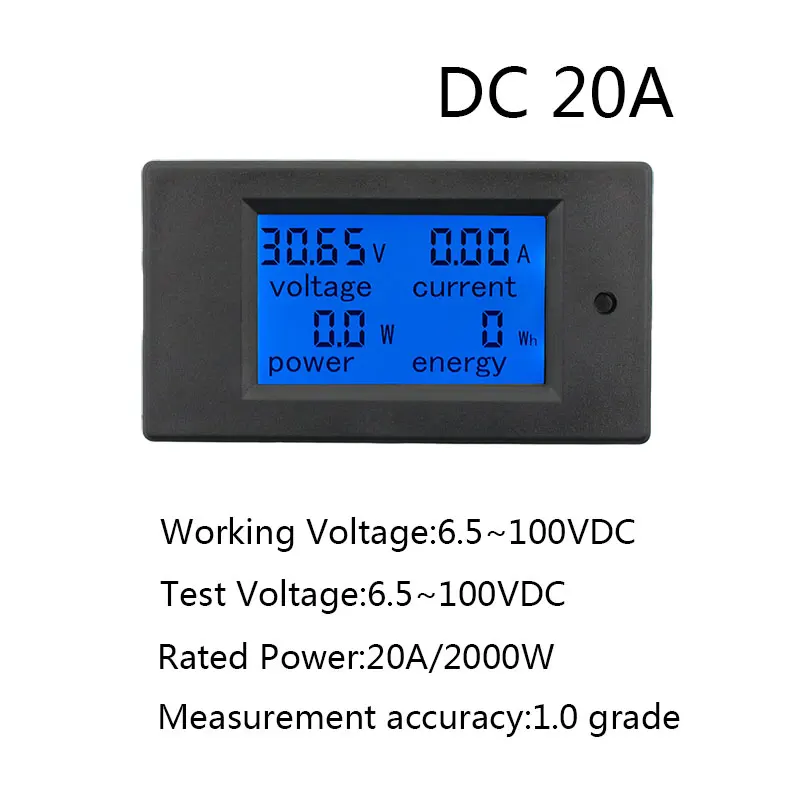

DC20A


DIY Supplies: Electrical

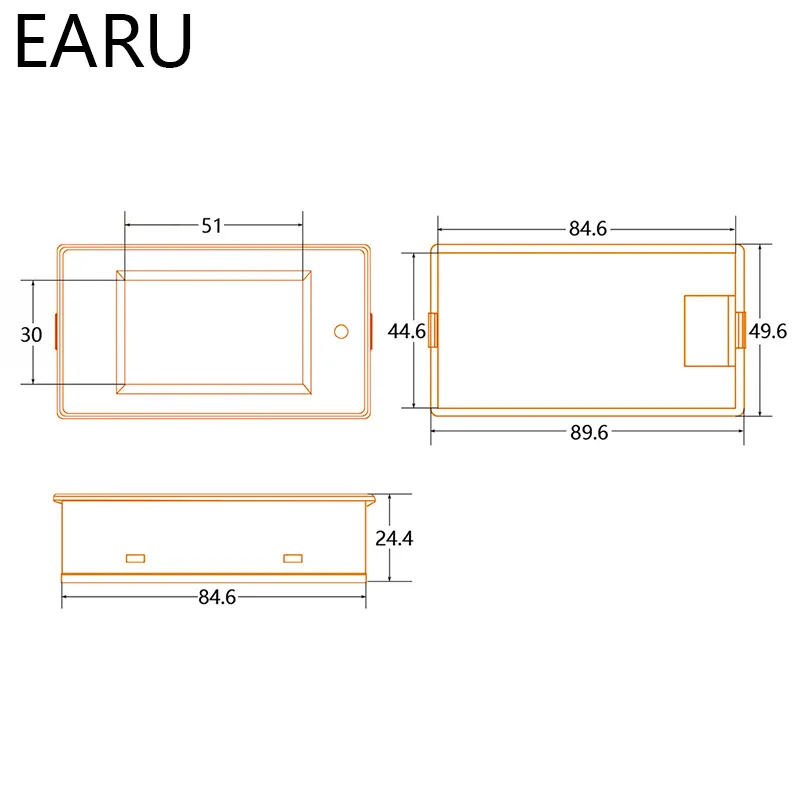

Dimensions: 89.6*49.6*24.4mm(L*W*H)
Display Type: Digital Only
Operating Temperature: -10-60 degree
Power Supply: DC
Accuracy Class: 1.0
Working voltage: 6.5 ~ 100VDC
Test voltage: 6.5 ~ 100VDC
Rated power: 100A/10000W
Measurement accuracy: 1.0
Power: Test range 0~10kW;1kW display format within 0.0~999.9W;
Energy: Test range 0~9999kWh;display format 0~9999Wh;display format 10~9999kW
Feature: Large-screen LCD screen full display function
measurement function: voltage, current, power, energy
Backlight: Blue
Package Listing: Due to what you choose
Measuring Range: 6.5 ~ 100VDC
Note1: 100A with SHUNT, 20A is without SHUNT
