5600R Fridge Roof Vent Kit DUAL 5600 Fans with TE888 3 way/Compressor Heat Extraction

SUITABLE FOR CARAVANS WITH A ROOF MOUNTED VENT This Kit can be used for either your 3way Fridge or a Compressor Fridge.

USUALLY LARGER FRIDGES OVER 90L DOUBLE DOOR STYLE

Regardless if you have a THETFORD, DOMETIC OR ANY OTHER CARAVAN/ MOTOR HOME/RV FRIDGE  This will MAKE A HUGE DIFFERENCE.

EVEN IF YOUR FRIDGE ALREADY HAVE A FAN ALREADY INSTALLED AS STANDARD THIS WILL REMOVE THE HOT AIR NOT JUST CIRCULATE

GETS RID OF 90-100% of ice build up inside the fridge....

NEVER HAVE TO DEFROST THE FRIDGE AGAIN...

All fitting instructions will be sent with the order

Complete Fridge cooling fan set


FRIDGE NOT GETTING COLD ENOUGH?

🇦🇺Then our Australian designed invention

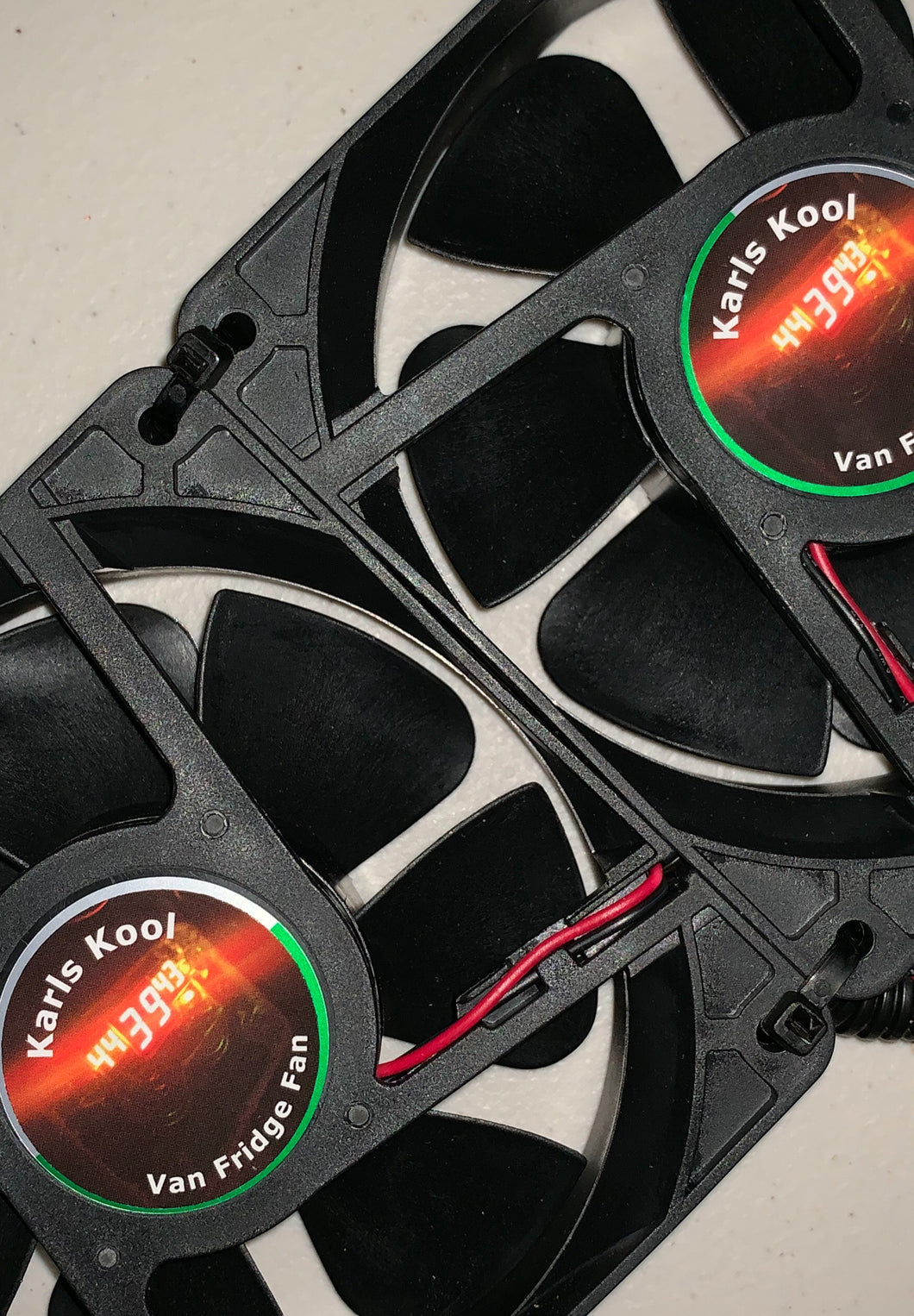

5600 FANS SPECS

5600 series = 108.89 CFM ( cubic feet per minute ) PER FAN

AMP Draw Per Fan 0.52(A)

Speed 3000 (RPM)

Max.Air Pressure 9.29mmH20)

Operating Voltage 6~14.0(VDC)

Noise = only 43.5dBA

INPUT Power 6.24(W)

Operating Temperature/humidity -10C~70C, 15~95%RH the average life expectancy of about 30,000 working hours

Life Expectancy  Rated voltage,40C relative humidity 15

* all figures are +- 10% *

The TE888 is 30mm deep, 70mm high and 100mm wide

This Kit produces SERIOUS AIR MOVEMENT.

The QUAD Kit Features:

An External Fridge Fan Kit Dual  Two 5600 Series fans (our largest most powerful fans) mounted to the top roof  vent.  These 5600 fans are high volume, low 12v draw fans together with the state of the art TE888 Controller for the back of the fridge to remove the excess hot air & communicate with the fridge to ensure optimum running efficiency. They are preset to come on & off at the perfect times & pick up temperatures before the fridge can overheat.

100% positive feedback.

100% satisfaction.

100% WORKS.

Will work whether you are running the fridge on GAS or 240v

No switches to turn on and off.

No guess work, if you install just a switch you operate yourself you can:

1. Mistakenly Leave fans on flattening your battery's

2. Over cool the back of the fridge causing even more problems

3. Forgetting to turn the fans on when needed.

No solar panels to setup separately.

No, Don't waste money on a fridge shade sail for the side of your van.

State of the art programmable digital controllers in sturdy box.

NO drilling required.

Helps diagnose if you have a problem as it will monitor the state of the fridge.

Only very basic tools needed to install

Uses the existing caravan top vent slots for outside fans.

Back fans draw is only 1.4 Amps when running.

Does NOT lose preset temperatures when disconnected from battery or fridge turned off.

Comes pre programmed to set and forget.

Pre Programmed to come on and off

If the setting is not suitable very easily reprogrammed by yourself.

YOU are in control of the settings

Comes with all fittings.

INSTALL

Very easy to install.

Wire now comes black negative (-) and red positive

All you need is a 12v source at the back of your fridge. Most fridges have one.

It should be ON when you turn the caravan battery switch on and OFF when you turn it off.

All you need is a screw driver, pliers and a 12v source.

Will decrease the inside temperature of your fridge.

Runs the fridge less for better results using less 12v as the fridge doesn't have to run as hard for a better result.

Will make the inside of your caravan cooler by removing the captured HOT AIR.

Makes your caravan fridge work as it was intended.

Most cooling problems are due to NOT ENOUGH AIR FLOW.

This increases the caravans fridge NATURAL flow.

Can be easily removed and installed on any future caravans.

Suitable for any application where hot air needs to be removed.

4 x white zip ties are supplied as pictured. If black coloured zip ties are required to match your grill please select when purchasing. If not advised white zip ties will be sent.
