5625Q QUAD COMPRESSOR FRIDGE External Fan Kit SIDE VENT 120MM Fans Heat Extraction WITH TE888 Controller IP67 DUST AND WATERPROOF,

🇦🇺AUSTRALIAN MADE, 🇦🇺AUSTRALIAN STOCK FOR DESPATCH USING AUSTRALIA POST

These fans are perfect for any Double Door Compressor Fridges 90L and OVER FOR FRIDGES WITH 2 SIDE VENTS

This is an EXTERNAL FRIDGE FAN KIT ONLY-

IP67 DUST AND WATERPROOF,

Includes ULTRA 5600 FANS mounted  to inside the TOP SIDE vent sucking air out AND TWIN 2500 NO LIGHTS FANS AT THE BOTTOM SIDE VENT

Regardless if you have a THETFORD , DOMETIC OR ANY OTHER CARAVAN/ MOTORHOME/RV FRIDGE. This will MAKE A HUGE DIFFERENCE.

EVEN IF YOUR FRIDGE ALREADY HAVE A FAN ALREADY INSTALLED AS STANDARD THIS WILL REMOVE THE HOT AIR NOT JUST CIRCULATE



Some ask what are the differences .

The difference is we make all our own fans and controllers  to our specifications and quality and there is not a computer fan in sight.

All our fans are built exclusively for us and are under continual review to make them better and quieter.

Our fans have a built in obstruction detection device just in case the fans become fouled for any reason.  Just one difference out of many.

PRODUCT SPECIFICATIONS



This is How we test it!!

With 14V(VDC) current we lock the blade, the circuit current is maintained or within a narrow range for 72 hours . it will protect the motor and it will not be damaged



5600 FANS SPECS

5600 series = 108.89 CFM ( cubic feet per minute ) PER FAN

AMP Draw Per Fan 0.52(A)

Speed 3000 (RPM)

Max.Air Pressure 9.29mmH20)

Operating Voltage 6~14.0(VDC)

Noise = only 43.5dBA

INPUT Power 6.24(W)

Operating Temperature/humidity -10C~70C, 15~95%RH the average life expectancy of about 30,000 working hours





2500 FAN SPECS

2500 series = 63.46 CFM ( cubic feet per minute ) PER FAN

AMP Draw Per Fan 0.20(A)

Speed 2100 (RPM)

Max.Air Pressure 2.86(mmH20)

Operating Voltage 6~14.0(VDC)

Noise = only 33.6dBA per fan

INPUT Power 1.80(W)

Operating Temperature/humidity -10C~70C, 15~95%RH the average life expectancy of about 30,000 working hours

Life Expectancy  Rated voltage,40C relative humidity 15

*

* all figures are +- 10% *

* all figures are +- 10%

SERIOUS AIR FLOW.



The TE888 is 30mm deep, 70mm high and 100mm wide

FITTING

All fitting instructions will be sent with the order

A receipt will be emailed to you

FRIDGE NOT GETTING COLD ENOUGH?

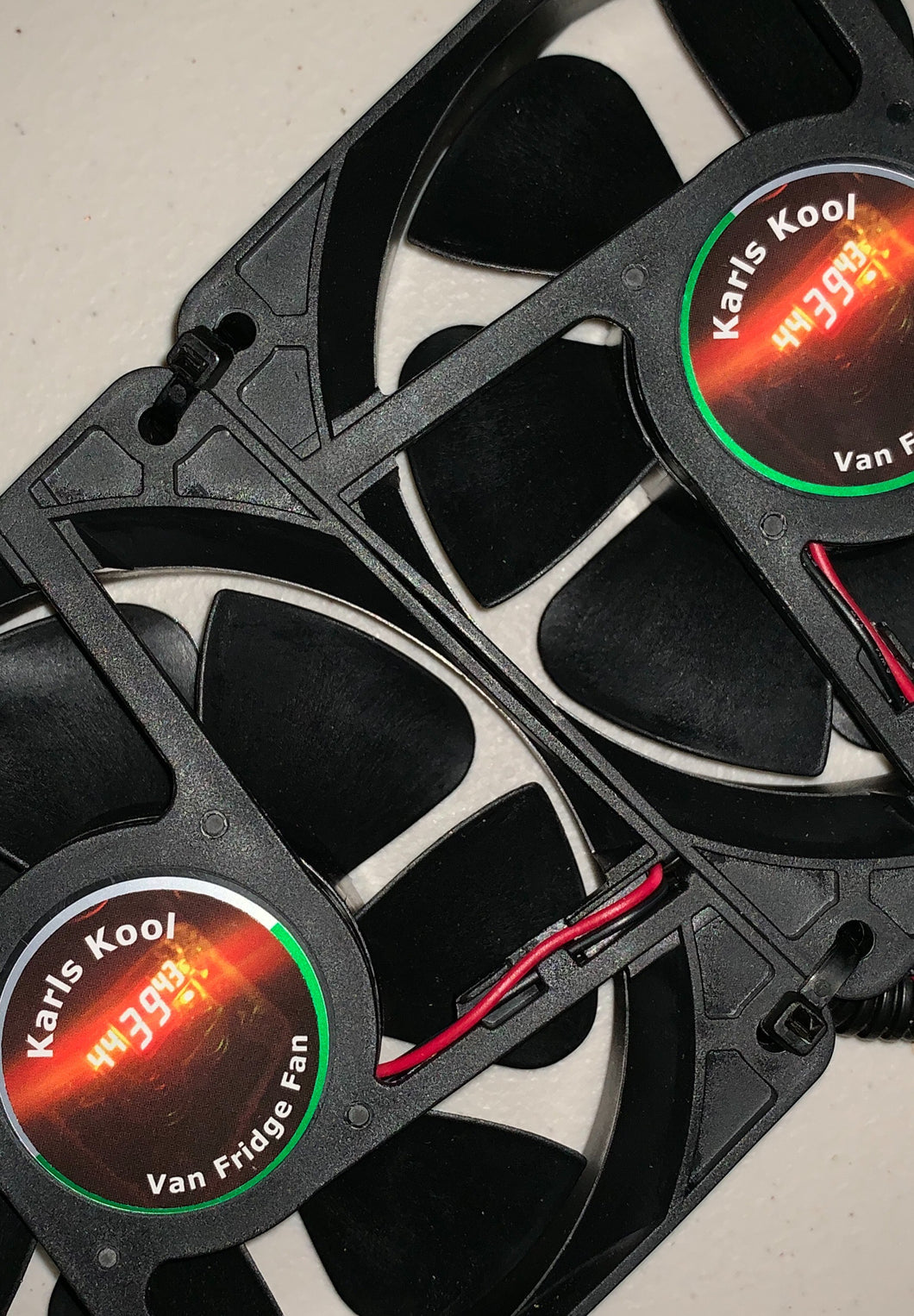

 TWO fans totaling 240mmx 120mm X 25mm brush-less, ultra quiet, high volume low 12v draw fans and state of the art TE888 controller....

Don't try to make up your own system and risk wrong wiring

100% positive feedback.

100% satisfaction.

100% WORKS

One is good, two is much, much better

Super quiet fans

Will work whether you are running the fridge on 240V or 12V

Will also work very well on 12v compressor fridges as well

No switches to turn on and off.

No guess work, if you install just a switch you operate yourself you can:

1. Mistakenly Leave fans on flattening your battery's

2. Over cool the back of the fridge causing even more problems

3. Forgetting to turn the fans on when needed.

No solar panels to setup separately.

No, Don't waste money on a fridge shade sail for the side of your van.

Will also switch on when the sun heats up and increases the fridge cabinet temperature automatically. No need for a shade to put up.

State of the art programmable digital controller in sturdy box.


NO drilling required.

Only very basic tools needed to install

Helps diagnose if you have a problem as it will monitor the state of the fridge

Uses the existing caravan top vent slots.

Draw is only 1.2Amps when running.

Does NOT lose preset temperatures when disconnected from battery or fridge turned off.

Will run fridge by up to 30 degrees C below ambient, photo attached.

Suits a COMPRESSOR fridge with compressor mounted at the BOTTOM of fridge

For a compressor fridge with the compressor mounted at the TOP PLEASE LOOK AT THE TRIPLE please look up the triple fan kit



Settings

Comes pre programmed to set and forget.

Pre Programmed to come on and off

If the setting is not suitable very easily reprogrammed by yourself.

The only system were YOU are in control of the settings

Comes with all fittings.



INSTALL

Very easy to install.

NO NEED TO REMOVE THE FRIDGE TO INSTALL.

INSTALL THOUGH THE CARAVAN VENTS .



Wire now comes black negative(-) and red positive(+) THAT'S IT EASY

JUST find a 12v source BEFORE YOU ORDER

It should PREFERABLY be ON when you turn the caravan battery switch on and OFF when you turn it off.

All you need is a screw driver, pliers and a 12v source.

Will decrease the inside temperature of your fridge by up to 7degrees or even more.

Runs the fridge less for better results using less Power as the fridge doesn't have to run as hard for a better result.

Will make the inside of your caravan cooler by removing the captured HOT AIR.

Makes your caravan fridge work as it was intended.

Most cooling problems are due to NOT ENOUGH AIR FLOW.

ASK ANYONE

This increases the caravans fridge NATURAL flow.

Can be easily removed and installed on any future caravans.

Suitable for any application where hot air need to be removed.



WIRING

All wiring included.

110cm wire from top fans to control box

50cm wire from bottom fans to control box

50cm from control box  to 12v source

30cm from control box to temp pickup

Zip Tie included for temp pickup attachment.

WIRE TO THE 12v AND WIRE TO THE FANS CAN BE CUSTOMIZED TO FIT YOUR FRIDGE IF THE LENGTHS ARE NOT SUITABLE. PLEASE ASK.

FUSES , CONNECTORS AND WIRE CAN ALSO BE SUPPLIED IF CONNECTING STRAIGHT TO THE BATTERY, PLEASE ASK.

4 x white zip ties are supplied as pictured. If black coloured zip ties are required to match your grill pleas select when purchasing. If not advised white zip ties will be sent.


FOR OTHER PAYMENT OPTIONS PLEASE CALL

0434618008


Would recommend siliconing the box to the back interior fridge wall.

SHIPPING DETAILS

This item will be sent by AUSTRALIA POST  and a tracking number will be provided.

🇦🇺All Karls Kool RV Fridge Fan Kits are IP Rights Protected

💁🏼‍♂️Protected under Intellectual Property Registration number 201611853
