5625Q QUAD 3way FRIDGE External Fan Kit SIDE VENT 120MM Fans Heat Extractions WITH TE888 Controller AND Fittings IP67 DUST AND WATERPROOF,

🇦🇺AUSTRALIAN MADE, 🇦🇺AUSTRALIAN STOCK FOR DESPATCH USING AUSTRALIA POST

These fans are perfect for any Double Door 3way Fridges

90L and OVER FOR FRIDGES WITH 2 SIDE VENTS

 IP67 DUST AND WATERPROOF,

🙋🏼‍♂️This is an EXTERNAL FRIDGE FAN KIT ONLY-

PRODUCT SPECIFICATIONS

5600 FANS mounted  to inside the TOP SIDE vent sucking air out AND 2500 NO LIGHTS FANS AT THE BOTTOM SIDE VENT

Regardless if you have a THETFORD , DOMETIC OR ANY OTHER CARAVAN/ MOTORHOME/RV FRIDGE. This will MAKE A HUGE DIFFERENCE.

EVEN IF YOUR FRIDGE ALREADY HAVE A FAN ALREADY INSTALLED AS STANDARD THIS WILL REMOVE THE HOT AIR NOT JUST CIRCULATE



This is How we test it!!

With 14V(VDC) current we lock the blade, the circuit current is maintained or within a narrow range for 72 hours . it will protect the motor and it will not be damaged

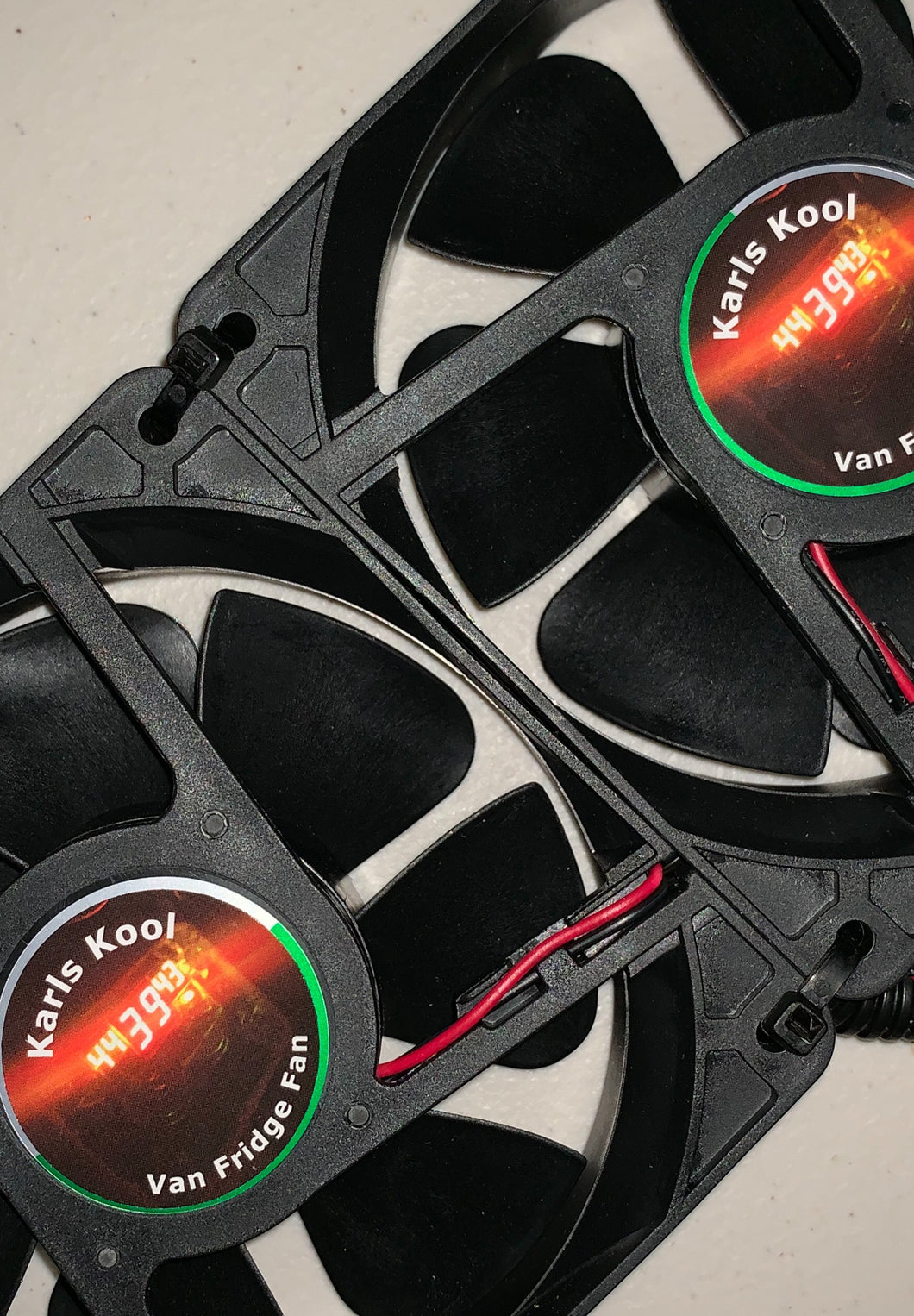

5600 FANS SPECS

5600 series = 108.89 CFM ( cubic feet per minute ) PER FAN

AMP Draw Per Fan 0.52(A)

Speed 3000 (RPM)

Max.Air Pressure 9.29mmH20)

Operating Voltage 6~14.0(VDC)

Noise = only 43.5dBA

INPUT Power 6.24(W)

Operating Temperature/humidity -10C~70C, 15~95%RH the average life expectancy of about 30,000 working hours

2500 FAN SPECS

2500 series = 63.46 CFM ( cubic feet per minute ) PER FAN

AMP Draw Per Fan 0.20(A)

Speed 2100 (RPM)

Max.Air Pressure 2.86(mmH20)

Operating Voltage 6~14.0(VDC)

Noise = only 33.6dBA per fan

INPUT Power 1.80(W)

Operating Temperature/humidity -10C~70C, 15~95%RH the average life expectancy of about 30,000 working hours

Life Expectancy  Rated voltage,40C relative humidity 15

*

* all figures are +- 10% *

SERIOUS AIR FLOW.



The TE888 is 30mm deep, 70mm high and 100mm wide



FITTING INSTRUCTIONS

All fitting instructions will be sent with the order

FRIDGE NOT GETTING COLD ENOUGH?


Don't try to make up your own system and risk wrong wiring

100% positive feedback.

100% WORKS

One is good, two is much, much better

Super quiet fans

Will work whether you are running the fridge on 240V or 12V

Will also work very well on 12v compressor fridges as well

No switches to turn on and off.

No guess work, if you install just a switch you operate yourself you can:

1. Mistakenly Leave fans on flattening your battery's

2. Over cool the back of the fridge causing even more problems

3. Forgetting to turn the fans on when needed.

Will also switch on when the sun heats up and increases the fridge cabinet temperature automatically. No need for a shade to put up.

State of the art programmable digital controller in sturdy box.


NO drilling required.

Only very basic tools needed to install

Helps diagnose if you have a problem as it will monitor the state of the fridge

Draw is only 1.2Amps when running.

Does NOT lose preset temperatures when disconnected from battery or fridge turned off.

Will run fridge by up to 30 degrees C below ambient, photo attached.

Suits a COMPRESSOR fridge with compressor mounted at the BOTTOM of fridge

For a compressor fridge with the compressor mounted at the TOP PLEASE LOOK AT THE TRIPLE please look up the fan kit

Comes pre programmed to set and forget.

If the setting is not suitable very easily reprogrammed by yourself.

The only system were YOU are in control of the settings

Comes with all fittings.



INSTALL

Very easy to install.

Wire now comes black negative(-) and red positive(+) THAT'S IT EASY

JUST find a 12v source

It should PREFERABLY be ON when you turn the caravan battery switch on and OFF when you turn it off.

All you need is a screw driver, pliers and a 12v source.

Will decrease the inside temperature of your fridge by up to 7degrees or even more.

Runs the fridge less for better results using less Power as the fridge doesn't have to run as hard for a better result.

Will make the inside of your caravan cooler by removing the captured HOT AIR.

Makes your caravan fridge work as it was intended.

Most cooling problems are due to NOT ENOUGH AIR FLOW.

This increases the caravans fridge NATURAL flow.

Can be easily removed and installed on any future caravans.

Suitable for any application where hot air need to be removed.



WIRING

All wiring included.

110cm wire from top fans to control box

50cm wire from bottom fans to control box

50cm from control box  to 12v source

30cm from thermostat to temp pickup



4 x white zip ties are supplied as pictured. If black coloured zip ties are required to match your grill pleas select when purchasing. If not advised white zip ties will be sent.

Would recommend silicone the box to the back interior fridge wall.



SHIPPING DETAILS

This item will be sent by AUSTRALIA POST  and a tracking number will be provided.

🇦🇺All Karls Kool RV Fridge Fan Kits are IP Rights Protected

💁🏼‍♂️Protected under Intellectual Property Registration number 201611853
