5600RC Roof Vent kit Complete Kit 5600R Roof mounted kit and TE8I internal kit for interior cool air circulation IP67 DUST AND WATERPROOF,
Regular price
$347.99
What's this?
š¦šŗĀ AUSTRALIAN MADE, š¦šŗAUSTRALIAN STOCK FOR DESPATCH USING AUSTRALIA POSTĀ
Ā PRODUCT DESCRIPTION
IP67 DUST AND WATERPROOF,
NOW WITH A INTERNAL FAN HOLDER. Ā TAKES ALL THE GUESSWORK OUT OF FITTING Ā
Ā COMPLETE Kits, both the External Fridge Fan Kit PLUS the Internal Fridge Fan Kit.
SUITABLE FOR CARAVANS WITH A ROOF MOUNTED VENT and bottom side vent . This Kit can be used for either your 3way Fridge or a Compressor Fridge.
Some ask what are the differences .
The difference is we make all our own fans and controllersĀ Ā to our specifications and quality and there is not a computer fan in sight.Ā
All our fans are built exclusively for us and are under continual review to make them better and quieter.Ā
Our fans have a built in obstruction detection device just in case the fans become fouled for anyĀ reason.Ā Ā Just one difference out of many.Ā
USUALLY LARGER FRIDGES OVER 90L DOUBLE DOOR STYLE
Regardless if you have a THETFORD, DOMETIC OR ANY OTHER CARAVAN/ MOTOR HOME/RV FRIDGE Ā This will MAKE A HUGE DIFFERENCE.
EVEN IF YOUR FRIDGE ALREADY HAVE A FAN ALREADY INSTALLED AS STANDARD THIS WILL REMOVE THE HOT AIR NOT JUST CIRCULATEĀ
GETS RID OF 90-100% of ice build up inside the fridge....
All fitting instructions will be sent with the order

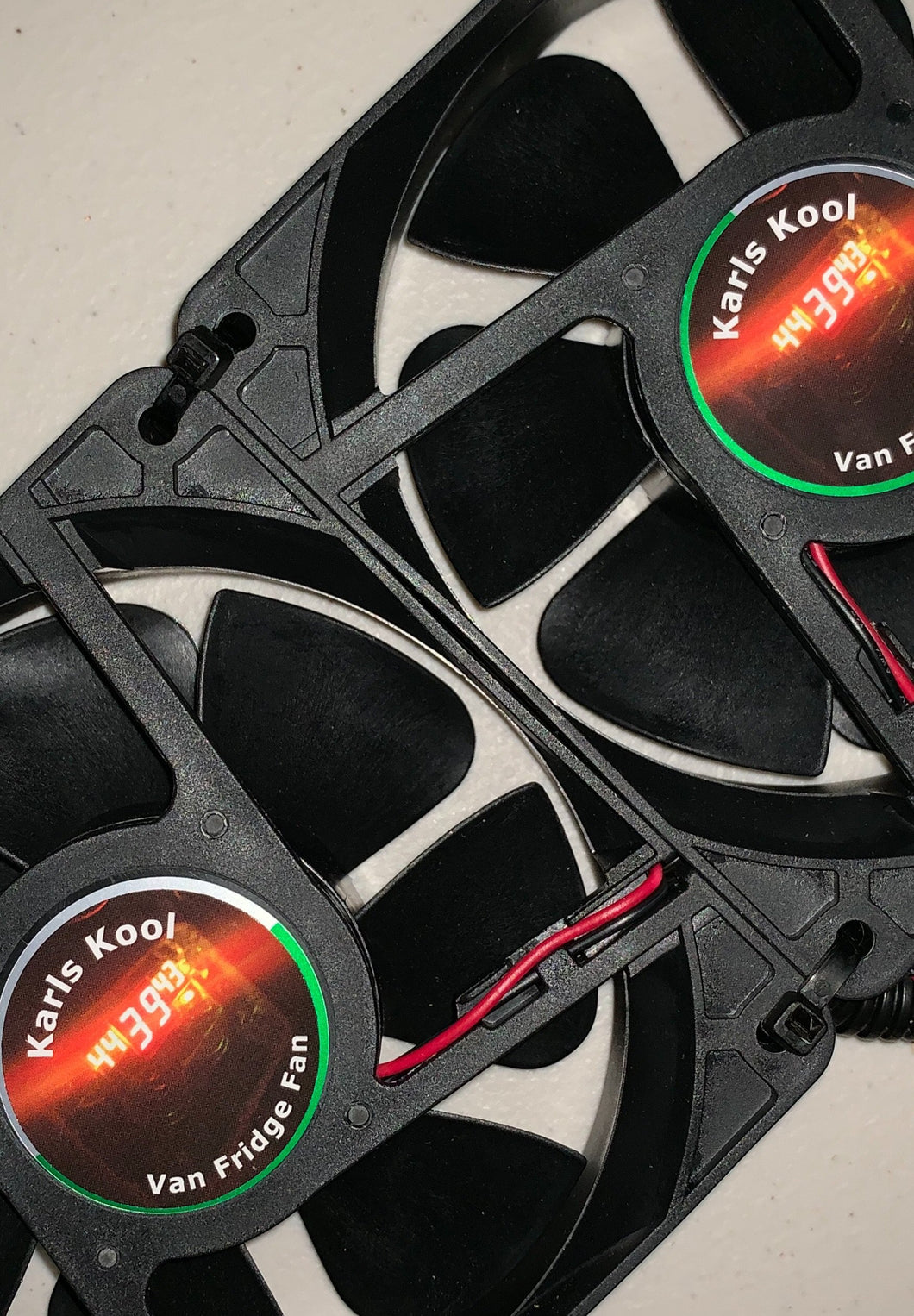

5600 FANS SPECS
5600 series = 108.89 CFM ( cubic feet per minute ) PER FAN
AMP Draw Per Fan 0.52(A)
Speed 3000 (RPM)
Max.Air Pressure 9.29mmH20)
Operating Voltage 6~14.0(VDC)
Noise = only 43.5dBAĀ
INPUT Power 6.24(W)
Operating Temperature/humidity -10C~70C, 15~95%RH the average life expectancy of about 30,000 working hoursĀ
Life Expectancy Ā Rated voltage,40C relative humidity 15
* all figures are +- 10% *Ā
Ā
Ā
The TE888 is 30mm deep, 70mm high and 100mm wide Ā
Ā
The DUALĀ Kit Features:
An External Fridge Fan KitĀ Two 5600 Series fans (our largest most powerful fans) mounted to the top vent. Ā These 5600 fans are high volume, low 12v draw fans together with the state of the art TE888 Controller for the back of the fridge to remove the excess hot air & communicate with the fridge to ensure optimum running efficiency. They are preset to come on & off at the perfect times & pick up temperatures before the fridge can overheat.
Being one of our COMPLETE Kits this Kit comes with an Internal Fridge Fan Kit.
One X 80mm blue light fan with separate Controller to run the Internal Fan to circulate all the cold air around the inside of the fridge. No more hot spots and cools food down similar to your home fridge. Your f&v will stay fresher for longer & youāll use less gas (or 12V if you have a Compressor Fridge).
Ā
Will work whether you are running the fridge on GAS or 240V or 12V
THIS UNIT IS BEST SUITED FOR THE LARGER TWO DOOR 12v COMPRESSOR fridges.
No switches to turn on and off.
No guess work, if you install just a switch you operate yourself you can:
1. Mistakenly Leave fans on flattening your battery's
2. Over cool the back of the fridge causing even more problems
3. Forgetting to turn the fans on when needed.
State of the art programmable digital controllers in sturdy box.
Helps diagnose if you have a problem as it will monitor the state of the fridge.
Only very basic tools needed to install
Uses the existing caravan top vent slots for outside fans.
Back fans draw is only 1.4 Amps when running and the fans engaged.Ā
Internal fan draws .16 of a amp when running and the fan engagedĀ
Does NOT lose preset temperatures when disconnected from battery or fridge turned off.
Pre Programmed to come on and off
If the setting is not suitable very easily reprogrammed by yourself.
YOU are in control of the settings
Comes with all fittings.
Ā
INSTALL
Very easy to install.
Wire now comes black negative (-) and red positive
All you need is a 12v source at the back of your fridge. Most fridges have one.
It should be ON when you turn the caravan battery switch on and OFF when you turn it off.
All you need is a screw driver, pliers and a 12v source.
Will decrease the inside temperature of your fridge.
Runs the fridge less for better results using less 12v as the fridge doesn't have to run as hard for a better result.
Will make the inside of your caravan cooler by removing the captured HOT AIR.
Makes your caravan fridge work as it was intended.
Most cooling problems are due to NOT ENOUGH AIR FLOW.
This increases the caravans fridge NATURAL flow.
Can be easily removed and installed on any future caravans.
Suitable for any application where hot air needs to be removed.
4 x white zip ties are supplied as pictured. If black coloured zip ties are required to match your grill please select when purchasing. If not advised white zip ties will be sent.
Ā
The interior unit comes with 30cm probe length and 300cm 12v wire.
Ā
SHIPPING DETAILSĀ
šš¼āāļøThis item will be sent by AUSTRALIA POST Ā and a tracking number will be provided.
š¦šŗAll Karls Kool RV Fridge Fan Kits are IP Rights ProtectedĀ
šš¼āāļøProtected under Intellectual Property Registration number 201611853
