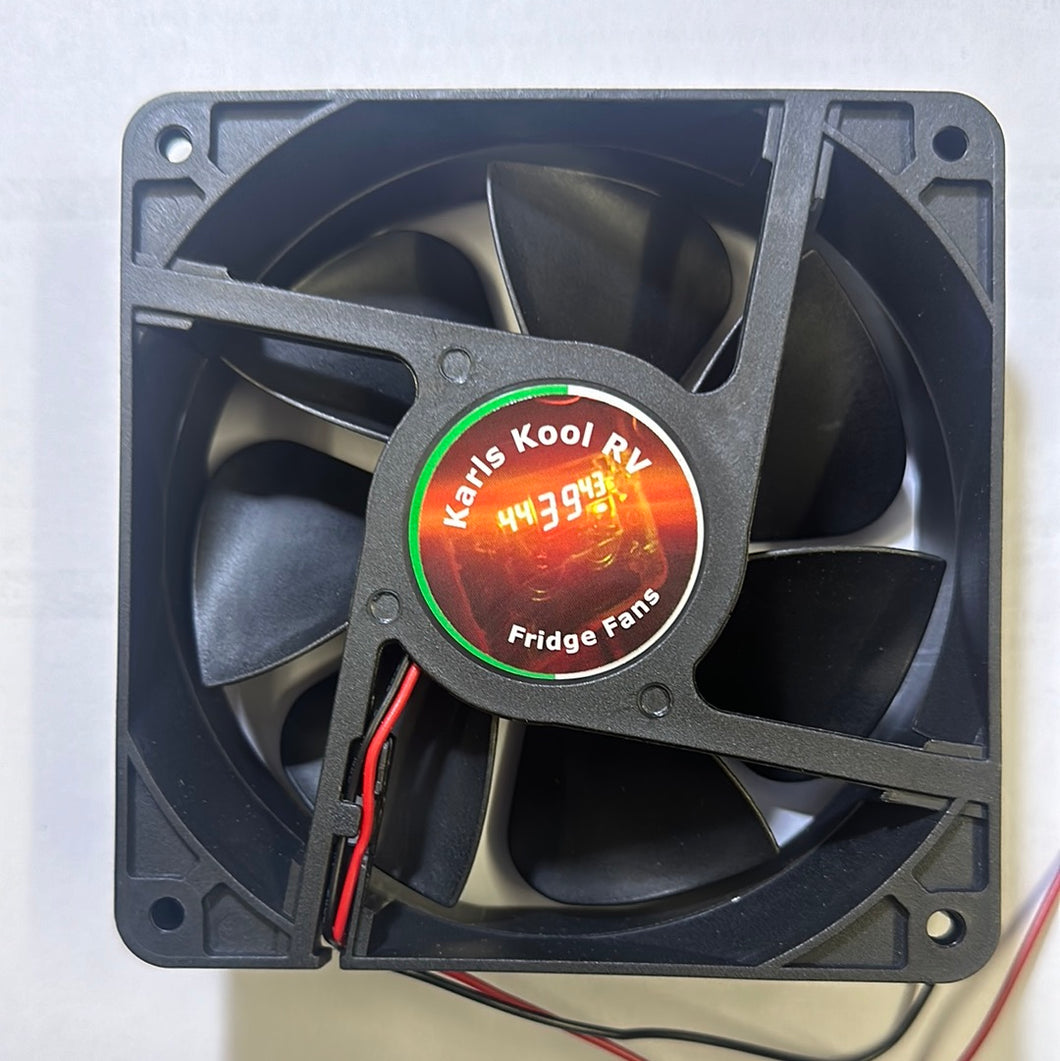

5600 single fan

5600 single fan for replacement

IP 68 waterproof/dust-proof  rated

This is How we test it!!

With 14V(VDC) current we lock the blade, the circuit current is maintained or within a narrow range for 72 hours . it will protect the motor and it will not be damaged

5600 FANS SPECS

5600 series = 108.89 CFM ( cubic feet per minute ) PER FAN

AMP Draw Per Fan 0.52(A)

Speed 3000 (RPM)

Max.Air Pressure 9.29mmH20)

Operating Voltage 6~14.0(VDC)

Noise = only 43.5dBA

INPUT Power 6.24(W)

Operating Temperature/humidity -10C~70C, 15~95%RH the average life expectancy of about 30,000 working hours

* all figures are +- 10% *
