5600C Complete Fridge DUAL HEAVY DUTY external & Internal Fans 2 Controller Heat Extraction  AUSTRALIAN MADE, AUSTRALIAN STOCK

5600C Complete Fridge DUAL HEAVY DUTY external & Internal Fans 2 Controller Heat Extraction AUSTRALIAN MADE, AUSTRALIAN STOCK

Regular price $325.99 Sale

or 10 interest free payments starting from $32.59 with What's this?

AUSTRALIAN MADE, šŸ‡¦šŸ‡ŗAUSTRALIAN STOCK FOR DESPATCH USING AUSTRALIA POSTĀ

NOW WITH A INTERNAL FAN HOLDER. Ā TAKES ALL THE GUESSWORK OUT OF FITTING Ā


The 5600 Series Complete Kit - our most robust & most powerful Fan Kit includes 2 Fridge Fan KitsĀ

SUITABLE FOR FULLY ENCLOSED CARAVANS & ALSO ONES WITH A SLIDE OUT, Ā WITH NORMAL height 185mm VENTS or Larger.

USUALLY LARGER FRIDGES OVER 90L DOUBLE DOOR STYLE. THIS UNIT IS ALSO BEST SUITED FOR THE LARGER TWO DOOR 12v compressor fridges.

Some ask what are the differences.

The difference is we make all our own fans and controllers to our specifications and quality and there is not a computer fan in sight.Ā

All our fans are built exclusively for us and are under continual review to make them better and quieter.Ā

Our fans have a built in obstruction detection device just in case the fans become fouled for anyĀ reason. Just one difference out of many.Ā


Regardless if you have a THETFORD, DOMETIC OR ANY OTHER CARAVAN/ MOTORHOME/RV FRIDGE. This Australian Made Fridge Fan Kit will MAKE A HUGE DIFFERENCE.

EVEN IF YOUR FRIDGE ALREADY HAVE A FAN ALREADY INSTALLED AS STANDARD THIS WILL REMOVE THE HOT AIR NOT JUST CIRCULATEĀ
GETS RID OF 90-100% of ice build up inside the fridge....

NEVER HAVE TO DEFROST THE FRIDGE AGAIN...

All fitting instructions will be sent with the orderĀ

This is How we test it!

With 14V(VDC) current we lock the blade, the circuit current is maintained or within a narrow range for 72 hours . it will protect the motor and it will not be damaged.

Ā

5600 FANS SPECS

5600 series = 108.89 CFM ( cubic feet per minute ) PER FAN

AMP Draw Per Fan 0.52(A)

Speed 3000 (RPM)

Max.Air Pressure 9.29mmH20)

Operating Voltage 6~14.0(VDC)

Noise = only 43.5dBA Ā

INPUT Power 6.24(W)

Operating Temperature/humidity -10C~70C, 15~95%RH the average life expectancy of about 30,000 working hoursĀ

Life Expectancy Ā Rated voltage,40C relative humidity 15

* all figures are +- 10% *Ā

The TE888 is 30mm deep, 70mm high and 100mm wide Ā

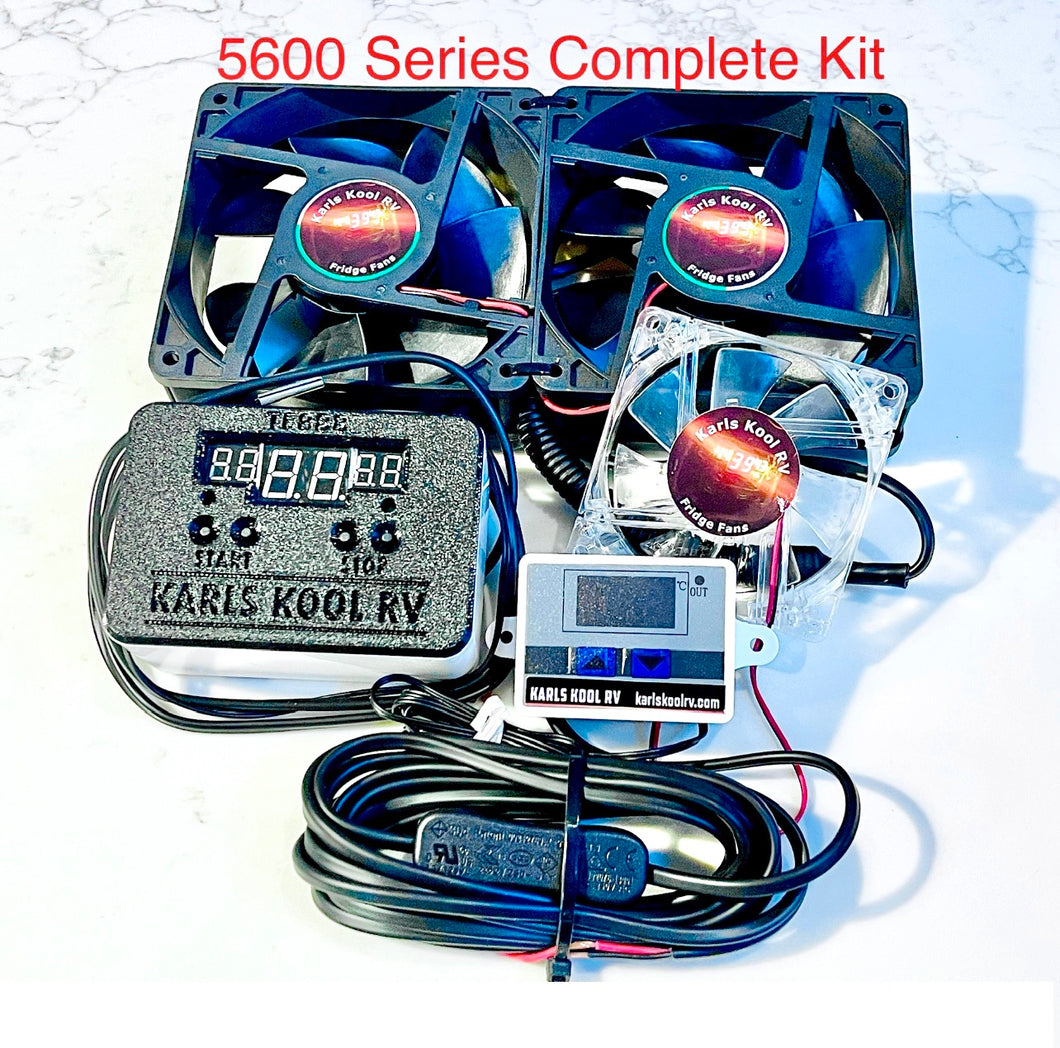

Complete Fridge cooling fan setā€Ø Includes 2 Fridge Fan Kits (both the Exterior Fridge Fan Kit and the Interior Fridge Fan Kit)

FRIDGE NOT GETTING COLD ENOUGH?

SERIOUS AIR MOVEMENT.Ā

Ā

ā€Ø5600 SeriesĀ PRODUCT SPECIFICATIONSĀ

Dual 120mm x 240mmĀ  5600 seriesĀ fans for the top vent a the top vent ultra high volume low 12v draw fans and state of the art TE888 controller...for the back of the fridge to remove all the hot air.

The TE888 is 30mm deep, 70mm high and 100mm wide Ā

Also One X 80mm blue light fan with separate controller to run the internal fan to circulate all the cold air around the inside of the fridge. No more hot spots and cools food down similar to your home fridge.

The internal fan and the probe and controller stay inside the fridge so all you need is a 12v source. ā€Ø

100% positive feedback.

100% satisfaction.

100% WORKS.

Will work whether you are running the fridge on GAS or 240V or 12V

No switches to turn on and off.

No guesswork, if you install just a switch you operate yourself you can:

1. Mistakenly Leave fans on flattening your battery's

2. Over cool the back of the fridge causing even more problems

3. Forgetting to turn the fans on when needed.

No solar panels to setup separately.

No, Don't waste money on a fridge shade sail for the side of your van.

State of the art programmable digital controllers in sturdy box.

NO drilling required.

Helps diagnose if you have a problem as it will monitor the state of the fridge.

Only very basic tools needed to install

Uses the existing caravan top vent slots for outside fans.

Back fans draw is only .8 Amps when running and the fans engagedĀ

Internal fan draws .3 amps when running and the fan engagedĀ

Does NOT lose preset temperatures when disconnected from battery or fridge turned off.

Ā SETTINGS

Comes pre programmed to set and forget.

Pre Programmed to come on and off

If the setting is not suitable very easily reprogrammed by yourself.

YOU are in control of the settings

Comes with all fittings.

Straightforward to install. Give us a call to answer any questions you might have 0434618008.

Wire now comes black negative (-) and red positive

All you need is a 12v source at the back of your fridge for both inside and outside kits.Ā Most fridges have one.

It should be ON when you turn the caravan battery switch on and OFF when you turn it off.

All you need is a screwdriver, pliers and a 12v source.

Will decrease the inside temperature of your fridge.

Runs the fridge less for better results using less 12v as the fridge doesn't have to run as hard for a better result.

Will make the inside of your caravan cooler by removing the captured HOT AIR.

Makes your caravan fridge work as it was intended.

Most cooling problems are due to NOT ENOUGH AIR FLOW.

This increases the caravans fridge NATURAL flow.

Can be easily removed and installed on any future caravans.

Suitable for any application where hot air needs to be removed.

4 x white zip ties are supplied as pictured. If black coloured zip ties are required to match your grill please let me know when purchasing. If not advised white zip ties will be sent.

ā€ØFOR OTHER PAYMENT OPTIONS PLEASE CALL

0434618008


The interior unit comes with 30cm probe and fan length and 110cm 12v wire inc switch .

SHIPPING DETAILSĀ

This item will be sent by AUSTRALIA POST Ā and a tracking number will be provided.

Ā

šŸ‡¦šŸ‡ŗAll Karls Kool RV Fridge Fan Kits are IP Rights ProtectedĀ

šŸ’šŸ¼ā€ā™‚ļøProtected under Intellectual Property Registration number 201611853
