2500 series Complete Caravan Fridge 2500 DUAL Fans Inside/outside Fans 2 Controllers. AUSTRALIAN MADE, AUSTRALIAN STOCK
or 10 interest free payments starting from $28.09 with
AUSTRALIAN MADE, AUSTRALIAN STOCK FOR DESPATCH USING AUSTRALIA POST
NOW WITH A INTERNAL FAN HOLDER. TAKES ALL THE GUESSWORK OUT OF FITTING

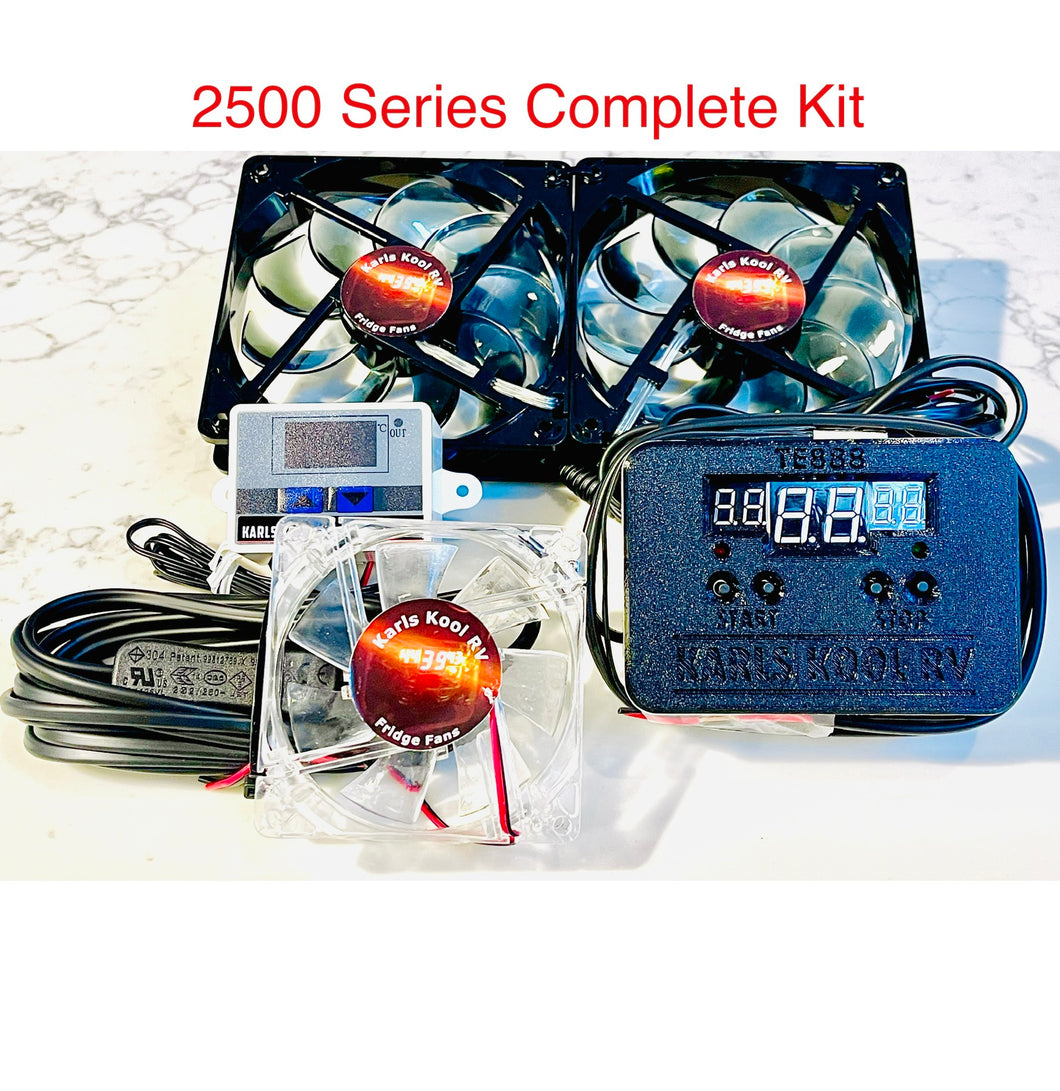

THE 2500 SERIES COMPLETE KIT
Being one of our three ‘Complete’ Kits the 2500 Series Complete Kit consists of 2 Fridge Fan Kits (both the External Fridge Fan Kit and the Internal Fridge Fan Kit)
SUITABLE FOR 99% of CARAVANS WITH NORMAL height 185mm or LARGER VENTS.
USUALLY LARGER FRIDGES OVER 90 L DOUBLE DOOR STYLE
GETS RID OF 90-100% of ice buildup inside your fridge.
NEVER HAVE TO DEFROST YOUR FRIDGE AGAIN....
Complete Fridge cooling fan set
FRIDGE NOT GETTING COLD ENOUGH
Some ask what are the differences .
The difference is we make all our own fans and controllers to our specifications and quality and there is not a computer fan in sight.
All our fans are built exclusively for us and are under continual review to make them better and quieter.
Our fans have a built in obstruction detection device just in case the fans become fouled for any reason. Just one difference out of many.
All fitting instructions will be sent with the order
NO NEED TO REMOVE THE FRIDGE TO INSTALL.
INSTALL EXTERNAL FANS THOUGH THE CARAVAN VENTS .
2500 series = 70CFM ( cubic feet per minute ) or 2000 CMM ( cubic metre per minute) PER FAN
Noise = only 18dBA per fan
4000 CLM PER MINUTE TOTAL.
* all figures are +- 10% *
The TE888 is 30mm deep, 70mm high and 100mm wide
EXTERNAL FRIDGE FAN KIT - Dual 2500 fans, ultra quiet, low 12v draw fans and state of the art TE888 controller...for the back of the fridge to remove all the hot air.
INTERNAL FRIDGE FAN KIT - Also One X 80mm blue light fan with separate controller to run the internal fan to circulate all the cold air around the inside of the fridge. No more hot spots and cools food down similar to your home fridge.
The internal fan and the probe and controller stay inside the fridge so all you need is a 12v source.
100% positive feedback.
Will work whether you are running the fridge on GAS or 240V or 12V
THIS UNIT IS BEST SUITED FOR THE LARGER TWO DOOR 12v compressor fridges.
No switches to turn on and off.
No guess work, if you install just a switch you operate yourself you can:
1. Mistakenly Leave fans on flattening your battery's
2. Over cool the back of the fridge causing even more problems
3. Forgetting to turn the fans on when needed.
No solar panels to setup separately.
No, Don't waste money on a fridge shade sail for the side of your van.
State of the art programmable digital controllers in sturdy box.
NO drilling required.
Helps diagnose if you have a problem as it will monitor the state of the fridge.
Only very basic tools needed to install
Uses the existing caravan top vent slots for outside fans.
Back fans draw is only .8Amps when running and the fans engaged
Internal fan draws .3amp when running and the fan engaged
Does NOT lose preset temperatures when disconnected from battery or fridge turned off.
Comes pre programmed to set and forget.
Pre Programmed to come on and off
If the setting is not suitable very easily reprogrammed by yourself.
YOU are in control of the settings
Comes with all fittings.
Very easy to install.
Wire now comes black negative (-) and red positive
All you need is a 12v source at the back of your fridge. Most fridges have one.
It should be ON when you turn the caravan battery switch on and OFF when you turn it off.
All you need is a screwdriver, pliers and a 12v source.
Will decrease the inside temperature of your fridge.
Runs the fridge less for better results using less 12v as the fridge doesn't have to run as hard for a better result.
Will make the inside of your caravan cooler by removing the captured HOT AIR.
Makes your caravan fridge work as it was intended.
Most cooling problems are due to NOT ENOUGH AIR FLOW.
This increases the caravans fridge NATURAL flow.
Can be easily removed and installed on any future caravans.
Suitable for any application where hot air needs to be removed.
4 x white zip ties are supplied as pictured. If black coloured zip ties are required to match your grill please let me know when purchasing. If not advised white zip ties will be sent.
FOR OTHER PAYMENT OPTIONS PLEASE CALL
The interior unit comes with 30cm probe length and 210cm 12v wire.
This item will be sent by AUSTRALIA POST and a tracking number will be provided.
🇦🇺All Karls Kool RV Fridge Fan Kits are IPRights Protected
💁🏼♂️Protected under Intellectual Property Registration number 201611853
