5625QC QUAD Side Vent Complete HEAVY DUTY Fan Kit DUAL 2500F+ DUAL 5600F plus TE888 controller for external and the TE8I kit for interior air circulation.

This Kit is one of our COMPLETE Kits and so you’ll receive 2 Fan Kits - both the External Fridge Fan Kit PLUS the Internal Fridge Fan Kit.
This Quad Kit is SUITABLE FOR CARAVANS WITH 2 X NORMAL SIDE with a height of 185mm VENTS or Larger.

USUALLY LARGER FRIDGES OVER 90L DOUBLE DOOR STYLE

Regardless if you have a THETFORD , DOMETIC OR ANY OTHER CARAVAN/ MOTORHOME/RV FRIDGE . This will MAKE A HUGE DIFFERENCE.

EVEN IF YOUR FRIDGE ALREADY HAVE A FAN ALREADY INSTALLED AS STANDARD THIS WILL REMOVE THE HOT AIR NOT JUST CIRCULATE
GETS RID OF 90-100% of ice build up inside the fridge....

NEVER HAVE TO DEFROST THE FRIDGE AGAIN..

Some ask what are the differences .

The difference is we make all our own fans and controllers  to our specifications and quality and there is not a computer fan in sight.

All our fans are built exclusively for us and are under continual review to make them better and quieter.

Our fans have a built in obstruction detection device just in case the fans become fouled for any reason.  Just one difference out of many.

FITTING INSTRUCTIONS:

All fitting instructions will be sent with the order

Complete Fridge cooling fan set


FRIDGE NOT GETTING COLD ENOUGH?

External Kit:

2 x 2500 Series Fans Mounted in the bottom vent and 2 x 5600 Series Fans mounted in the top vent. NO LIGHTS ON FANS PLUS a TE888 Controller

Fan Specifications:

5600 FANS SPECS

5600 series = 108.89 CFM ( cubic feet per minute ) PER FAN

AMP Draw Per Fan 0.52(A)

Highest IP 68 waterproof/dust-proof  rating

Speed 3000 (RPM)

Max.Air Pressure 9.29mmH20)

Operating Voltage 6~14.0(VDC)

Noise = only 43.5dBA

INPUT Power 6.24(W)

Operating Temperature/humidity -10C~70C, 15~95%RH the average life expectancy of about 30,000 working hours

Life Expectancy  Rated voltage,40C relative humidity 15

* all figures are +- 10% *

2500 series = 70CFM   ( cubic feet per minute ) or 2000CMM ( cubic metre per minute) PER FAN

Noise = 18dBA

4000CMM bottom fans

* all figures are +- 10%

The TE888 is 30mm deep, 70mm high and 100mm wide

 The four fans work together to provide SERIOUS AIR MOVEMENT.

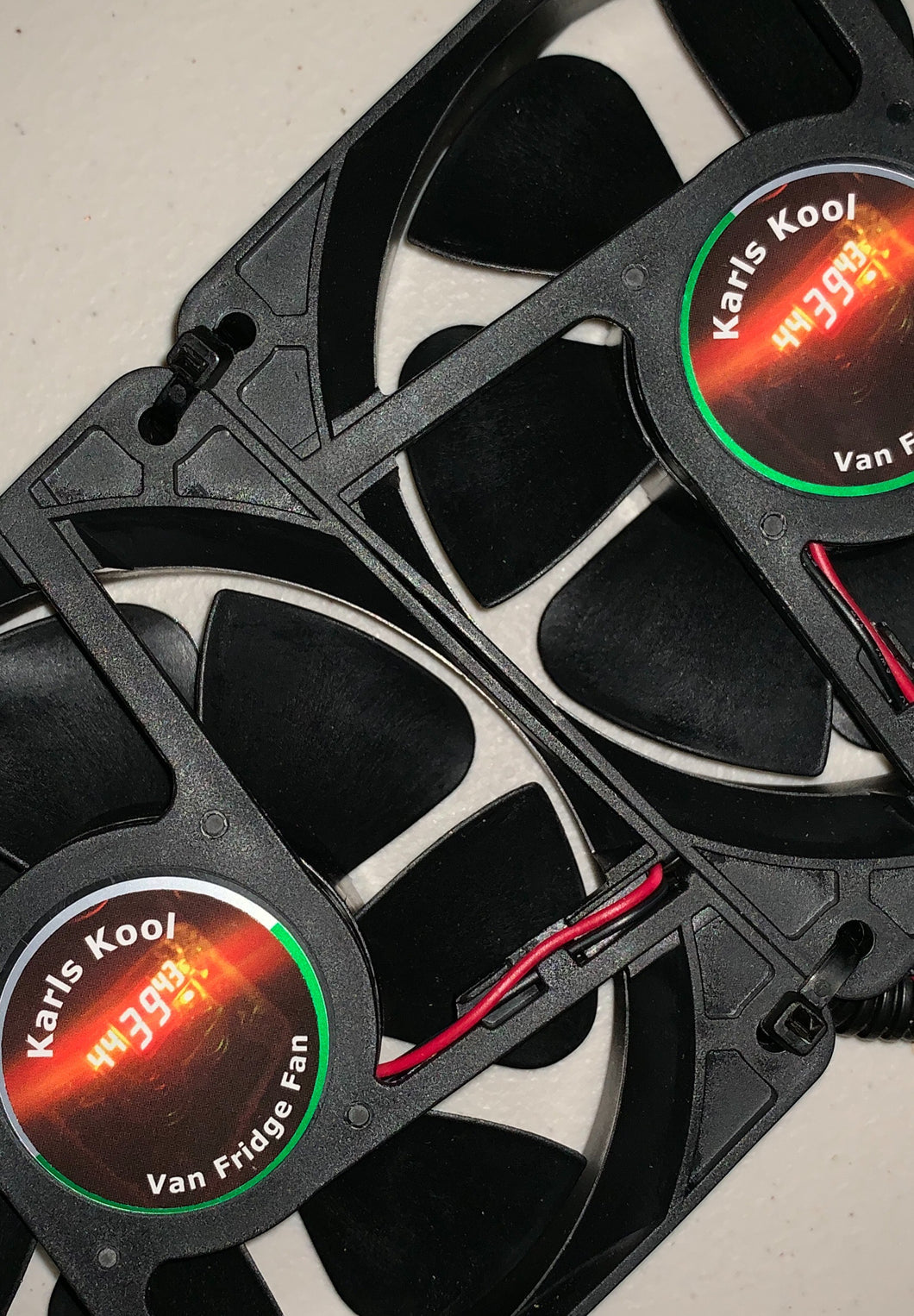

Dual 120mm x 240mm  2500 fans for the bottom vent and 5600 fans mounted to the top vent, ultra high volume low 12v draw fans and state of the art TE888 controller. These 4 fans are for the back of the fridge to remove all the excess hot air.

Internal Fridge Fan Kit:

Being a COMPLETE Kit you’ll also receive an Internal Fridge Fan Kit. This Kit consists of One X 80mm blue light fan with a separate controller to run the internal fan to circulate all the cold air (that the External Kit has provided) around the inside of the fridge. No more hot spots and cools food down similar to your home fridge. Your f&v will stay fresher for longer & you’ll use less gas (or battery if it’s a compressor Fridge)

The internal fan and the probe and controller stay inside the fridge so all you need is a 12v source.


100% positive feedback.

100% satisfaction.

100% WORKS.

Will work whether you are running the fridge on GAS or 240V or 12V

THIS UNIT IS BEST SUITED FOR THE LARGER TWO DOOR 12v compressor fridges.

No switches to turn on and off.

Added Info:

No guess work, if you install just a switch you operate yourself you can:

1. Mistakenly Leave fans on flattening your battery's

2. Over cool the back of the fridge causing even more problems

3. Forgetting to turn the fans on when needed.

No solar panels to setup separately.

No, Don't waste money on a fridge shade sail for the side of your van.

State of the art programable digital controllers in sturdy box.

NO drilling required.

Helps diagnose if you have a problem as it will monitor the state of the fridge.

Only very basic tools needed to install

Uses the existing caravan top vent slots for outside fans.

Back fans draw is only 1.4 Amps when running and the fans engaged

Internal fan draws .3amps when running and the fan engaged

Does NOT lose preset temperatures when disconnected from battery or fridge turned off.

Comes pre programmed to set and forget.

Pre Programmed to come on and off

If the setting is not suitable very easily reprogrammed by yourself.

YOU are in control of the settings

Comes with all fittings.

Very easy to install.

Wire now comes black negative (-) and red positive

All you need is a 12v source at the back of your fridge. Most fridges have one.

It should be ON when you turn the caravan battery switch on and OFF when you turn it off.

All you need is a screw driver, pliers and a 12v source.

Will decrease the inside temperature of your fridge.

Runs the fridge less for better results using less 12v as the fridge doesn't have to run as hard for a better result.

Will make the inside of your caravan cooler by removing the captured HOT AIR.

Makes your caravan fridge work as it was intended.

Most cooling problems are due to NOT ENOUGH AIR FLOW.

This increases the caravans fridge NATURAL flow.

Can be easily removed and installed on any future caravans.

Suitable for any application where hot air needs to be removed.

4 x white zip ties are supplied as pictured. If black coloured zip ties are required to match your grill please let me know when purchasing. If not advised white zip ties will be sent.


FOR OTHER PAYMENT OPTIONS PLEASE CALL

0434618008

The interior unit comes standard with 30cm probe length and 100cm 12v wire.
