PowMr MPPT 60A 50A 40A 30A LCD Solar Charge Controller 12V 24V 36V 48V Auto Solar Panel Battery Charge Regulator for Max 190V

PowMr MPPT 60A 50A 40A 30A LCD Solar Charge Controller 12V 24V 36V 48V Auto Solar Panel Battery Charge Regulator for Max 190V

Regular price $326.99 Sale

or 10 interest free payments starting from $32.69 with What's this?

PowMr MPPT 60A 50A 40A 30A LCD Solar Charge Controller 12V 24V 36V 48V Auto Solar Panel Battery Charge Regulator for Max 190V DC Input

>>Features

  • 100% MPPT controller

  • Intelligent Maximum Power Point Tracking technology

  • Built-in DSP controller with high performance

  • Automatic battery voltage detection 12V/24V/36V/48V

  • Three-stage charging optimizes battery performance

  • Multi-function LCD displays

  • Reverse polarity protection of solar panel

  • Overcharge protection

  • Can be mounted easily

  • Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery

MPPT-60A-(11)0

>>Specification

Model No. MPPT-30A MPPT-40A MPPT-50A MPPT-60A
Charging mode MPPT Maximum power point tracking automatically
Charging 3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge
System type DC12V/24V/36V/48V Recognition automatically
System voltage automatic recognition 12V system (DC9V-DC15V)
  24V system (DC18V-DC29V)
  36V system (DC30V-DC39V)
  48V system (DC40V~DC60V)
Soft start time ≤1S
Dynamic response and recovery time 100us
Max efficiency ≥98.1%  (Voc is 1.5 or 2 times than battery, then it’s best efficiency)
PV utilization ≥99%
Input specification

Voc from PV

( Make sure the Voc of PVmeeting the requirement as right. Voc is 1.5 or 2 times than battery, then it’s best efficiency. )

12V system (DC20V~DC80V)
  24V system (DC37V~DC105V)
  36V system (DC50V~DC160V)
  48V system (DC72V~DC160V)
The maximum PV input voltage (Voc) DC190V(The controller can’t work at this voltage of long duration that will break controller. Please refer to Input voltage from PV.)

The maximum PV input power

(The total power rated of PV can’t be over this watt that will break the controller.)

12V system  (360W) 12V system  (480W) 12V system  (600W) 12V system  (720W)
  24V system (720W)

24V system

(960W)

24V system (1200W) 24V system (1440W)
  36V system (1080W) 36V system (1400W) 36V system (1800W) 36V system (2100W)
  48V system (1440W) 48V system (1700W) 48V system (2200W) 48V system (2800W)
Output specification
Selectable battery type(default is Sealed) Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user)
Absorption Charging Voltage Refer to Batteries charging reference
Floating Charging Voltage Refer to Batteries charging reference
Overcharging protection voltage 12V system (15V)
  24V system (30V)
  36V system (45V)
  48V system (60V)
Rated output current 30A 40A 50A 60A
Temperature Coefficient ±0.02%/ centi-degree
utomatic temperature compensation 14.2V-(Max temperature-25 centi-degree)*0.3
Output voltage ripple-peak 100mV
Output voltage accurac ≤±1%
Input Anti-intrusion protection yes
Temperature Protection 75°C
Temperature increased protection

Output power will reduce when it’s more 70 °C

Output power will be normal when it’s less 55 °C

Fan-on temperature >40 °C
Fan-off temperature <35 °C
Acoustic noise ≤40dB
Cooling way Forced air cooling.
Components Imported materials, Accord  to EU standards, Industrial grade range.
Environmental requirements Meet 2002/95/EC; No cadmium, hydrides and fluorides
Security Level Accord to CE, PSE, FCC, EMC, EN60950
Electromagnetic Compatibility Accord to EN61000, EN55022, EN55024
Enclosure IP21
Net weight(Kg) 1.1
Gross weight(Kg) 1.2

>>Product Show

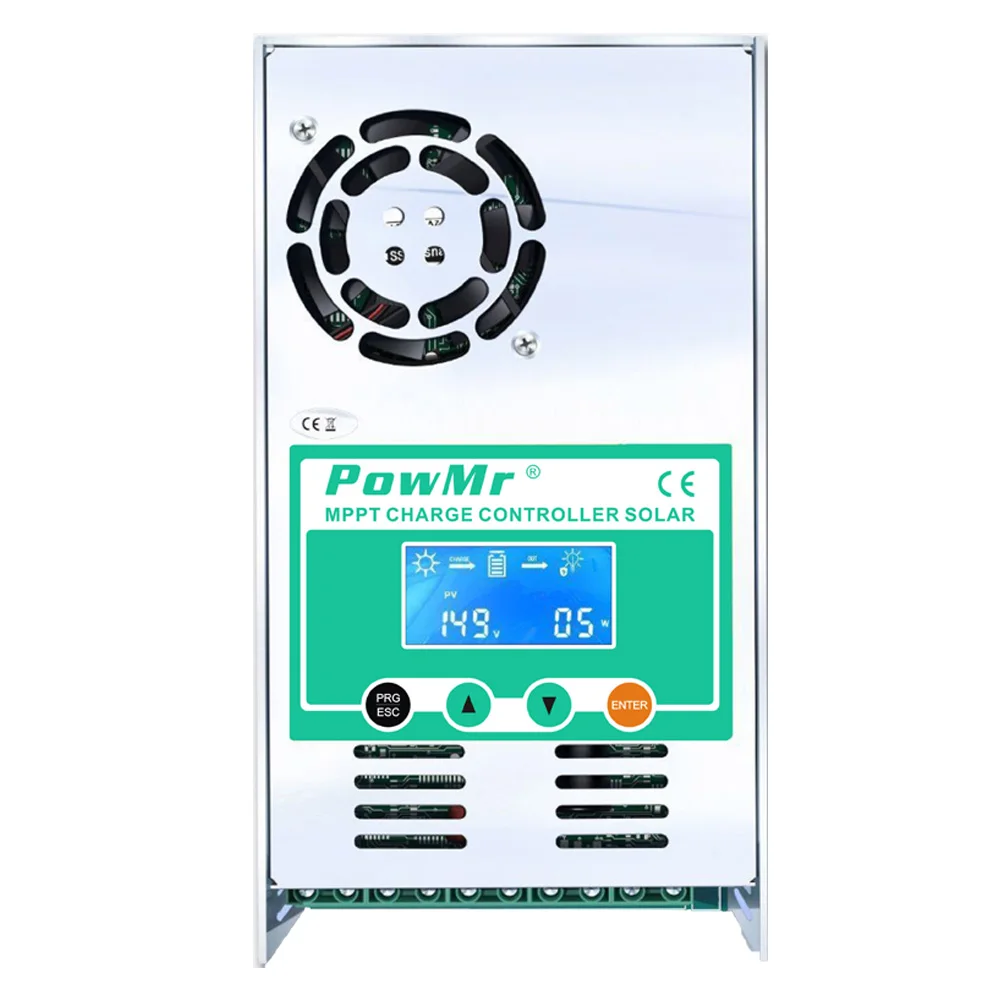

PowMr MPPTphoto 2

photo 1

0502101112

Brand Name: PowMr
Application: Charger Controller
Application: Solar System Controller
Application: Voltage Controller
Application: Solar Working Station
Application: Lighting Controller
Model Number: MPPT Solar Controller
Maximum Current: 60A/50A.40A/30A
is_customized: Yes
Rated Voltage: 12V/24V/36V/48V Auto working
Charging mode: MPPT Maximum power point tracking automatically
The maximum PV input voltage (Voc): DC190V
Selectable battery type(default is Seale: Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for othe
Display: Back-Light LCD
