60A/40A MPPT Solar Charge Controller eSmart3 12V 24V 36V 48V Auto work LCD Display Max 150V Input RS485 Communication

60A/40A MPPT Solar Charge Controller eSmart3 12V 24V 36V 48V Auto work LCD Display Max 150V Input RS485 Communication

Regular price $540.99 Sale

or 10 interest free payments starting from $54.09 with What's this?

eSmart3 50A MPPT Solar Charge Controller Regulator 12V 24V 36V 48V Auto Control Backlight LCD Display Max 150V Input  RS485 Communication with PC

-14(1)

Introduction:

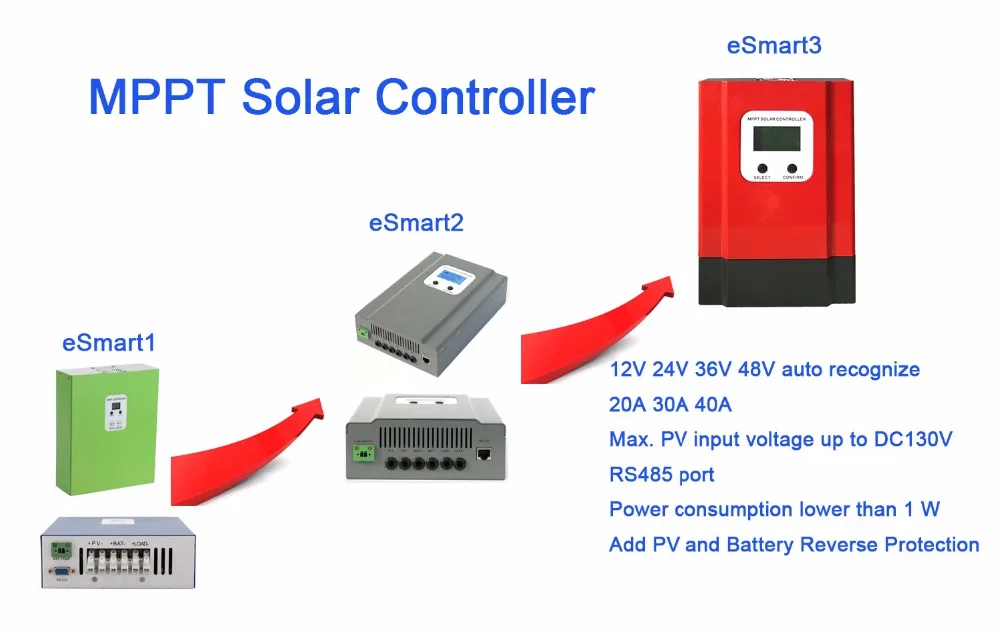

eSmart3 series is second generation of eSmart mppt controller, based on eSmart series mppt controller, we update the display, control method, connect way, internal structure etc. It features an efficient MPPT control algorithm to track the maximum power point of the PV array. Greatly improve the utilization of solar panel. Its intelligent LCD and upper PC display, mostly convenient for customers to check, records and parameter setting. Widely used in solar off-grid system of telecommunication base station, household system, street lighting system, field monitoring system, etc.

System Voltage: DC12V/24V/36V/48V automatic recognition

Rated Current:50A

Maximum PV(voc) Voltage: 150V



Features :

Advanced MPPT control algorithm, MPPT efficiency ≥99.5%,Machine conversion efficiency up to 98%;

DC12V/24V/36V/48V battery system automatic recognition,user can use it in different system conveniently ;

Maximum PV input voltage up to DC150V ;

3-Stage charge: (constant current, constant voltage, floating charge), to extend the battery life ;

Discharge mode: ON/OFF mode, PV voltage control mode.

Users can choose 4 kinds of commonly standard batteries(Sealed lead acid,Vented, Gel, NiCd). Other kinds of batteries can be defined by users ;

Most information could be provide by LCD like: model No., PV input voltage, battery type, battery voltage, charging current, charging power, working status and so on. Also customer's information like company name, website and logo can be added into Solar Eagle software.

RS485 communication, we can offer communication protocol also, it’s convenient for user’s integration management.

CE,ROHS,FCC certifications approved.We can help clients to approve other certifications.

2 years warranty, and 3~10 years extended warranty service also can be provided



MPPT Controller connection diagram

system

Parameters Display & Setting information:

20161102_171503_001

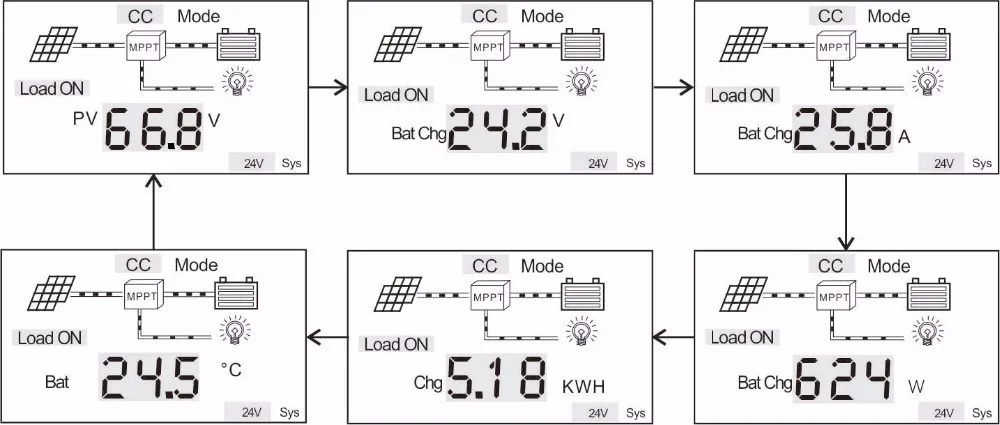

LCD display information



20161102_171503_002

                                                       Set the battery type and LOAD control mode



model

20A

30A

40A

50A

60A

eSmart3-12V/24V/36V/48V-series

Charge Mode

MPPT(Maximum Power Point Tracking)

MPPT Efficiency

≥99.5%

System Type

       DC12V/24V/36V/48V

 Automatic recognition

Input Characteristic

PV Max. voltage (VOC)

12V/24V/36V/48Vsystem

DC130V

150V

High Input voltage Protection point

12V/24V/36V/48V system

DC130V

150V

Rated PV Power

12V system

260W

390W

520W

650W

780W

24V system

520W

780W

1040W

1300W

1560W

36V system

780W

1170W

1560W

1950W

2340W

48V system

1040W

1560W

2080W

2600W

3120W

Charge Characteristic

Charge Mode

MPPT(Maximum Power Point Tracking)

Charge Method

 3-Stage: constant current(fast charging)-constant voltage-floating charge

Selectable Battery Types (Default type is Gel battery)

12V/24V/36V/48V system

Flooded, Sealed lead acid, Gel battery

(Other types of the batteries also can be defined)

Rated charge current

12V/24V/36V/48V system

20A

30A

40A

50A

60A

Output Discharge Characteristic

Output voltage

Based on battery voltage

Max. DC Load current

30A

The output control

On mode, Off mode, PV voltage control mode, Time control, PV + Time control

Display/Communication

LCD display/PC upper (RS485)

System type, PV voltage,charge voltage, charging current, charging power, temperature

Other Parameters

Protect function

Yes

Thermal methods

fan cooling

Packing Size DxWxH(mm)

289*204*101

330*245*150

Net Weight (kg)

2.3

2.8

Gross Weight (kg)

2.8

3.5

Type of Mechanical Protection

IP 25



Product Pictures



30273133Application: Lighting Controller
Application: Charger Controller
Application: Voltage Controller
Model Number: eSmart3
Maximum Current: 40A/60A
is_customized: Yes
Brand Name: Tricorpower
